Ufudu Cabins
Ufudu Cabins Insulation
Better insulation due to the use of green energy insulation materials
and wall panel's insulated joints.
Fireproof Insulation
Fireproof Grade A; EI60 standard
Excellent Performance
- Fast and Flexible Installation
- Up to 50% time saving on construction
- Internal wall panels can be relocated.
- Maximum 3 levels Load capacity.
Fast Installation & Flexible Combination
Up to 50% time saving on construction over traditional building techniques. Installation of a single cabin can be undertaken by only two skilled workers.
A range of robust Ufudu cabins available for sale or hire
As a significant benefit, our collapsible and easily transportable Ufudu Cabins can save our customers and end-users up to 75% on freight charges. This means our flatpack system yields significant total cost savings, particularly when an affordable mobile space management solution, suitable for accommodation, is needed in a remote area.
Because freight costs into Africa are notably expensive and sometimes prohibitive, we transport collapsed units of Ufudu Cabins, which we erect on site to your requirements, instead of transporting space.
Whether you want to build a rural school, clinic or library, or a special construction, mining or exploration camp with homes and offices, a suite of mobile Ufudu Cabins, suitable for accommodation, complete with storage, sleeping, ablution, eating, laundry and recreational facilities, is available, for sale or hire, to meet your specific needs.
Our mobile Ufudu Cabins are robust, low maintenance and easy to install and customers have the option to purchase or hire, at attractive and competitive rates.
TECHNICAL SPECIFICATIONS
- Height: external: 2,790 m/internal size: 2,500 m
- Width: external: 2,435 m/internal size: 2,240 m
- Length: external: 6,055 m/internal size: 5,860 m
- Width: 1 145 mm
- Thickness: 70 mm
- Insulation: 60 mm mineral wool (120 kg/m³)
- External cladding: 0,5 mm thick galvanised steel sheet
- Internal cladding: 0,5 mm galvanised steel sheet
- Made from cold-rolled Q235A, 4 mm-thick profiled
steel with four ISO-dimensioned corner casts - 12 x Q235A 3 mm-thick steel cross-members
- Forklift pocket size: 90 m x 250 mm x 2 050 mm
- Insulation: 100 mm mineral wool (40 kg/m³)
- Subfloor: 0,5 mm thick galvanised steel sheet
- 18 mm cement fibre (Calcium Silicate) flooring
- Thickness: 60 mm
- Insulation: 50 mm mineral wool (120 kg/m³)
- Cladding (both sides): 0,5 mm galvanised steel sheet
- Made from cold-rolled Q235A, 3 mm-thick welded steel profiles with four ISO-dimensioned corner casts
- 9 x Q235A 3 mm-thick steel cross-members
- Insulation: 50 mm mineral wool (40 kg/m³) + 50mm mineral wool (120 kg/m³) galvanised steel sheeting internally and externally
- Roof covering: 0,5 mm-thick galvanised steel sheeting
- Ceiling: 0,5 mm galvanised steel sheet
- Sliding aluminium profiled windows with dimension: 800 x 1 100 mm
- Lockable aluminium roller shutter
- Removable and sliding mosquito screen
- Steel frame: 20-40 um primer, 40-50 um topcoat, Kingfisher blue
- Wall panels: 45 um, RAL 9001 cream
- Aluminum door with dimensions 825 mm x 2 040 mm
- Insulation: 40 mm mineral wool (120 kg/m³)
Ufudu Cabin (Flatpack) System
Ufuducabins are easy to unpack, erect and commission with speed and accuracy, thanks to the flatpack system. All assembly can be done on site with standard tools. Each of our Ufuducabins can be erected on virtually any surface, because we provide adjustable base jacks inside our kits. This flatpack system allows the end-user to join multiple units of mobile homes, offices or storage, even if the ground is uneven or not level. What’s more, should any Ufuducabins panel or other component be damaged, it is easy to replace because of the simple, modular designs we use.

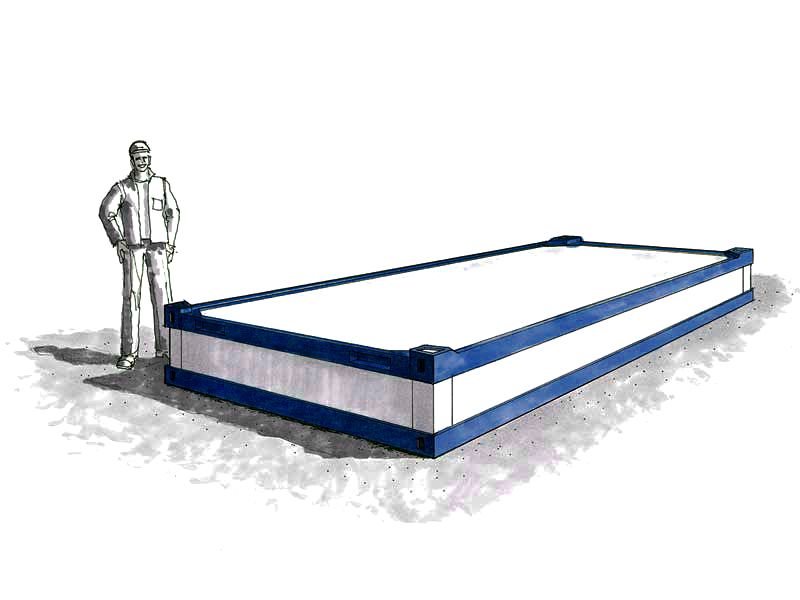

All mobile Ufuducabins, available for sale or hire, have a basic superstructure with interchangeable unit panels. Each superstructure comprises a floor, four corner posts and a roof.
The superstructure is available in a 6m standard size, all of which are 2,44m wide and 2,79m high.

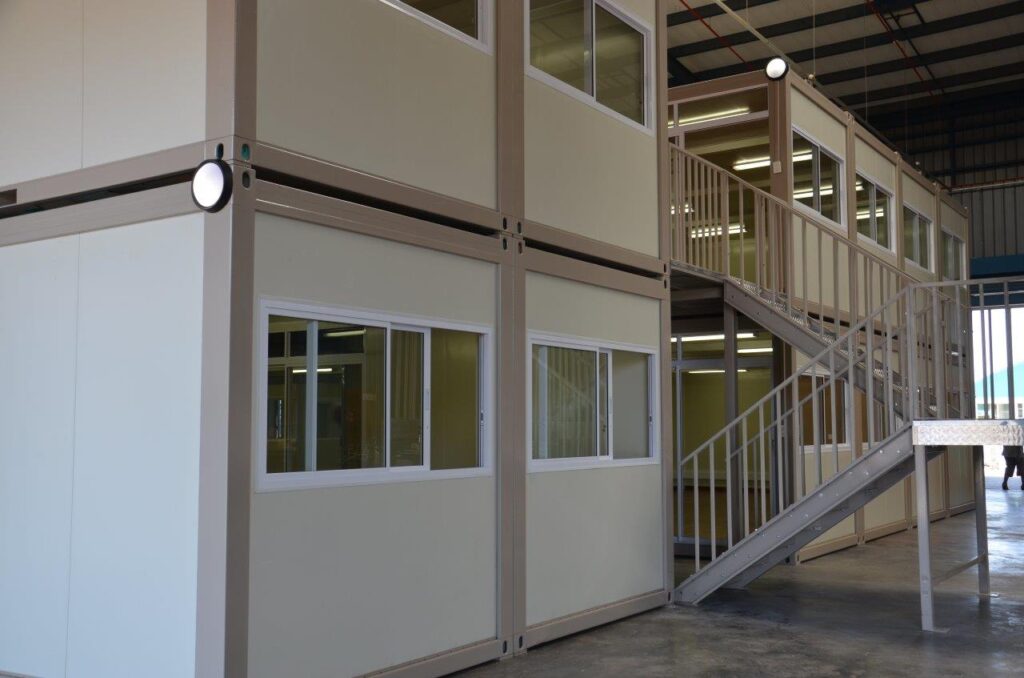

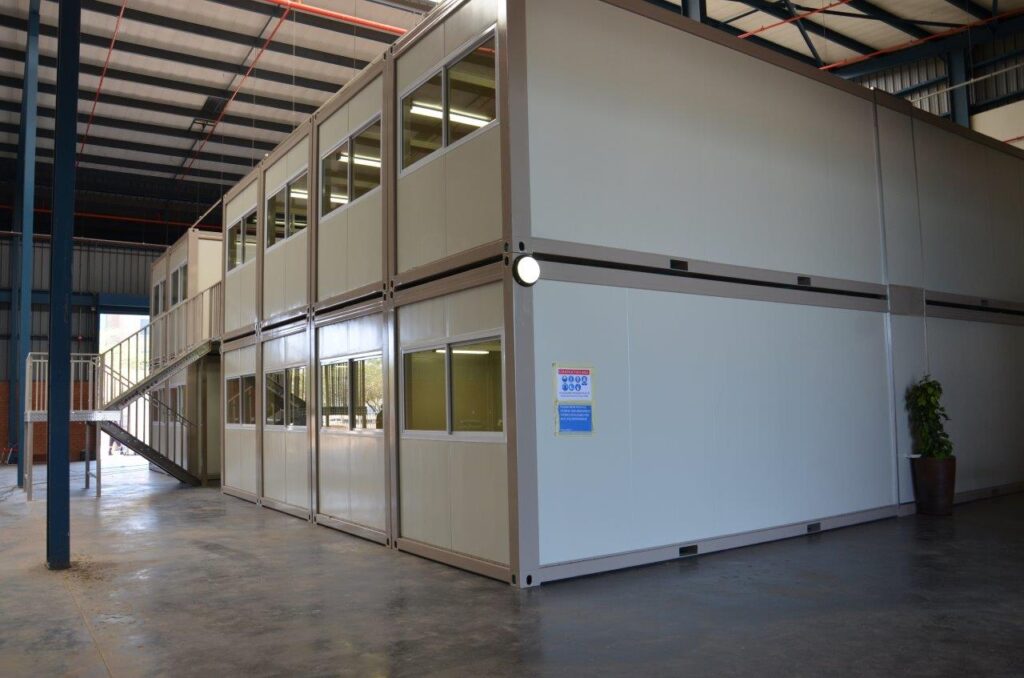

The modular superstructures in the flatpack system are designed to allow units to be joined and stacked for an unlimited range of home or office configurations.
With each Ufuducabin model, a predefined number of panels to complete the final cabin structure is installed. These panels, in turn, comprise different standard types: blind panels, door panels and window panels. These can be supplied and installed in various configurations to suit the customer’s requirements.
UFUDU CABIN MODELS
OUR PRODUCTS
Ufudu Cabins
Steel Container
Prefab Buildings (Parkhomes)
Speedsplan
Our mobile Transpack cabins are robust, low maintenance and easy to install. Customers have the option of sale or hire, at attractive…
Speedspace offers a wide range of general purpose ISO dry-freight steel containers, as well as refrigerated steel containers for storage…
Speedspace provide a comprehensive range of affordable, efficient and low-maintenance prefab buildings for sale or hire, to meet…
This prefab modular system is portable, and easily transported, even to remote areas, and is erected on site, on either a concrete slab foundation or a factory-manufactured, suspended floor.
